ABC zones

ABC zones classify the sections of a location series into A (prime), B, and C zones. The zones are used by the analytical ABC reports and by the ABC relocation report, which uses them to suggest moves that place fast movers in the prime zones.

How to find ABC zones​

  1. Go to Reports → ABC report.
  2. Click Manage ABC zones (the button is called Create ABC zones if zones haven't been set up for your location series yet).

From the ABC zones page, you can always get back to the report via the Back to ABC report button in the top right corner.

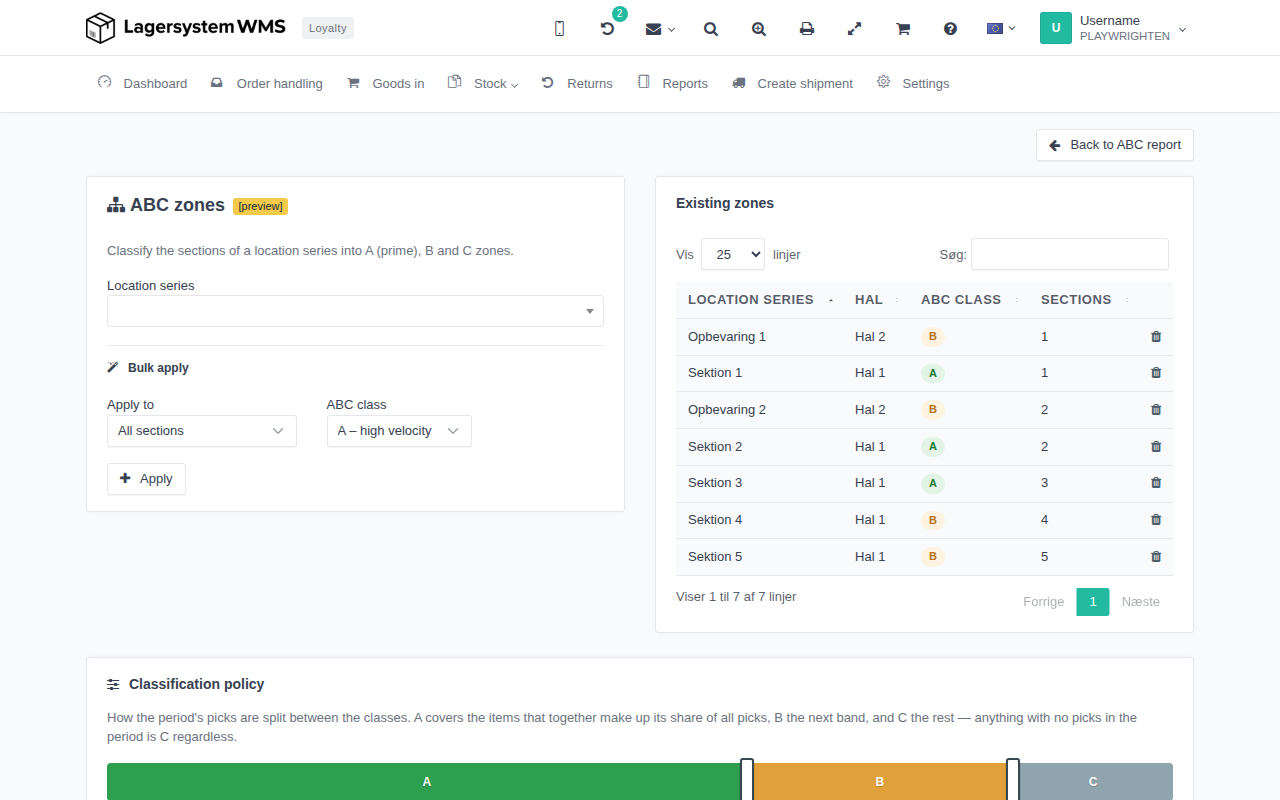

The ABC zones page with location series selection, bulk apply, existing zones, and classification policy

Classify sections into a zone​

First select the location series you want to classify in the Location series field. Once a series is selected, a grid appears with one cell per section in the series. Click a cell to cycle its class through none → A → B → C → none, then click Save to save the distribution for the selected series.

Bulk apply​

Under Bulk apply, you can set a class on multiple sections in a single operation, instead of clicking them one by one:

  • Apply to — choose whether the class should be set on all sections in the series, on the first/last/middle N sections, or on a specific range of sections (given by a from and to section).
  • ABC class — the class (A, B, or C) to apply.

Click Apply to save.

Existing zones​

The Existing zones panel shows all zones already set up, in a table with the columns Location series, Hal, ABC class, and Sections. You can search the list and page through it (Forrige/Næste), and you can delete a zone group again via the trash icon in the last column.

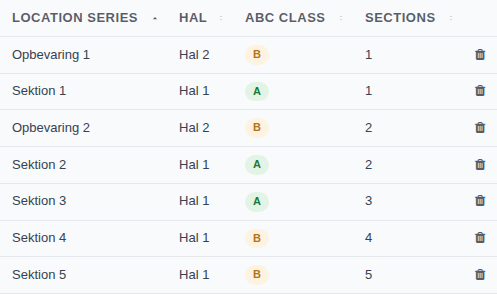

Existing zones table with location series, hall, ABC class, and sections

Classification policy​

The Classification policy panel controls how the period's picks are distributed between the classes: A covers the items that together make up its share of all picks, B the next band, and C the rest — anything with no picks in the period is C regardless.

The distribution is set with a bar split into A, B, and C shares. Drag the two handles between the bars to move the boundaries between the classes, or click directly on the bar to move the nearest handle. Then click Save to save the new policy.

Visual zoning​

Visual zoning draws your actual warehouse based on a layout plan: place your location series on a floor plan once, and you can then paint A/B/C zones directly onto it — and get picking routes that follow the actual walking route.

If a warehouse layout plan hasn't been set up for the warehouse yet, the page instead shows a message that a layout needs to be set up first, with a link to do so.

Once a plan exists, the page shows a map of the warehouse where each location series is divided into one cell per section and colored according to its ABC zone (green for A, orange for B, gray for unzoned sections). You can drag a selection area across the map to select cells across multiple location series at once and then set a class on the entire selected area together.

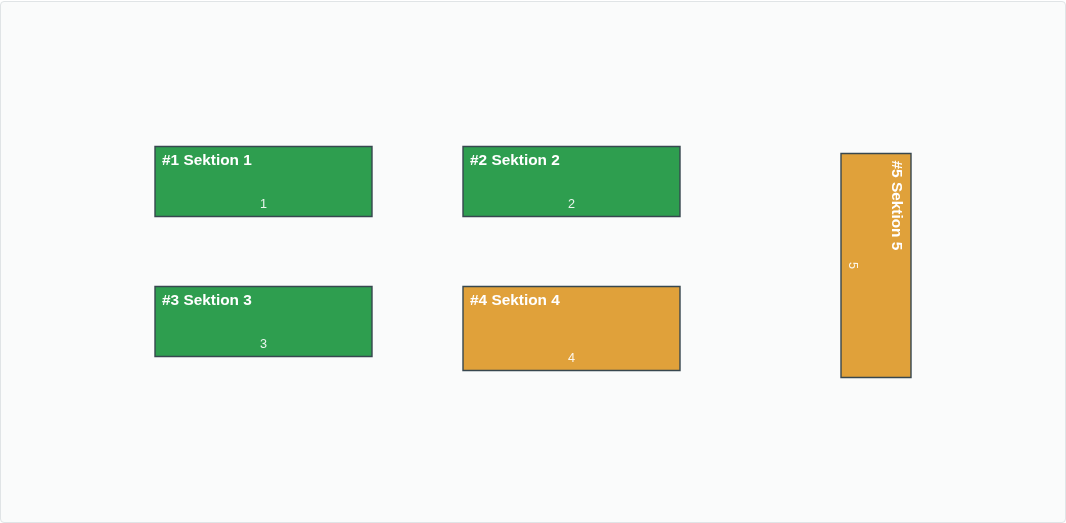

Map of the warehouse with sections colored according to their ABC zone
